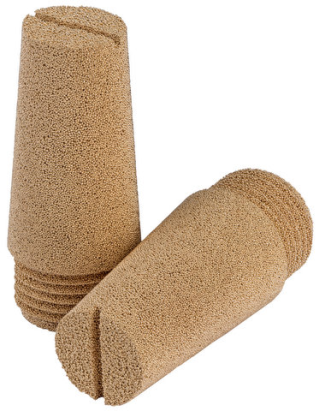

Sintered Bronze Silencer
Optimize your pneumatic systems with Satkirti’s high-quality Sintered Bronze Silencers. These silencers are precision-engineered to deliver optimal noise reduction, durability, and seamless performance across various industrial applications.
Designed to reduce noise in pneumatic and hydraulic equipment, enhancing operational efficiency and comfort. Made with advanced technology, each sintered bronze silencer provides exceptional durability and reliable filtration. Built from premium-grade sintered bronze filters and structured with spherical bronze powder, they deliver stable, uniform pore distribution for high-efficiency filtration.
Maintenance-Friendly Design: Satkirti sintered bronze silencers are designed for easy maintenance. With a reversible flow and back-flushing option, they are simple to clean, extend lifespan, and reduce the need for frequent replacements.
- Custom Design and Precision Fit: They are uniquely designed to meet specific machine requirements, ensuring seamless integration with a high-quality finish.
- High Durability and Low Maintenance: Made from heat-resistant and anti-corrosive materials, these silencers are reusable and require minimal maintenance, adding long-term value to your systems.
- Enhanced Noise Reduction: Crafted with precise dimensions, these sintered bronze filters ensure significant noise reduction for quieter and safer environments.
- Robust and Economical: These silencers provide high-temperature resilience and durability, offering economic benefits without compromising on quality.
- Premium Quality Materials: Constructed from spherical bronze powder, each sintered bronze silencer delivers consistent filtration and sound suppression in various industrial setups.
- Variable Pore Pitch: The mean pore pitch is variable, from 1 µm to 100 µm.
- Chemical Resistance: Depth silencers which efficiency is very high.
- Adaptable and Machinable: Work at high temperature and high pressure without deformation.
- High Permeability: The chemical resistance is good.
- Coefficient Of Permeability:The coefficient of permeability of KPMI sintered bronze elements can be calculated as:
Where,
Coefficient of permeability of a given grade in Darcy (* 1 darcy=10-8)cm2 Q =Flow of fluid through sintered bronze element in cc/sec. L =Thickness of filter element in cm n =Viscosity of fluid in poise p= Pressure drop across element in dynes/cm2
Technical Specifications Of The Product
- CHEMICAL COMPOSITION (NOMINAL) Cu-89%, Sn-11%
- DENSITY 4.5 – 6.5 gm/cc
- POROSITY BY VOLUME Cu-89%, Sn-11%
- DENSITY 35 – 50%
- COEFFICIENT OF LINEAR EXPANSION 18.4 x 106 / °C
- TRACTION RESISTANCE 3 – 6kg/ mm2
- FILTERING DEGREE 5µ - 150µ
- LENGTH RANGE 2mm – 1000mm
- TEMPERATURE SUITABILITY Up to 200°C in oxidizing atmosphere
